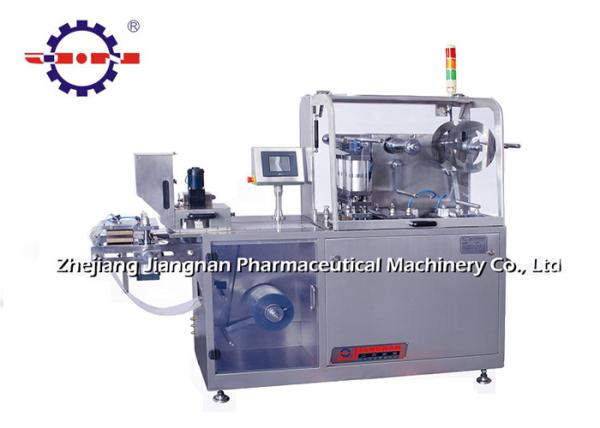

    ALAL ALPVC Pharmaceutical Blister Packaging Machines 2300×560×1410mm 600kg

    Ask Lasest Price
    Brand Name : JIANGNAN
    Model Number : DPP-150
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40UNITS /PER YEARS
    Delivery Time : 45 DAYS
    • Product Details
    • Company Profile

    ALAL ALPVC Pharmaceutical Blister Packaging Machines 2300×560×1410mm 600kg


    High Speed Blister Packaging Machine DPP-150 for ALAL ALPVC Pharmaceutical Machine

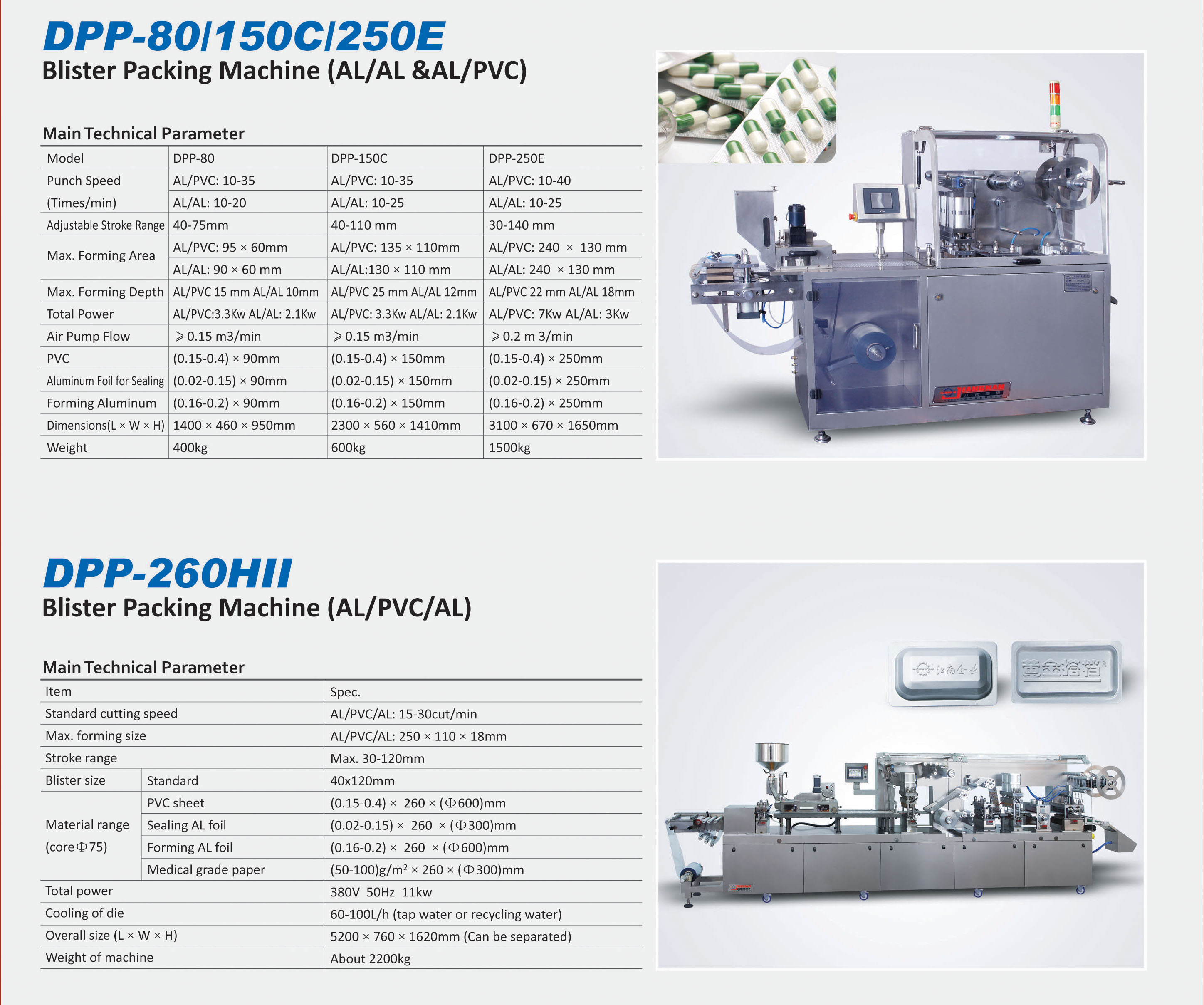

    Technical Parameter

    Punch Speed

    AL/PVC:0-35Times/min

    AL/AL:10-25

    Adjustable Stroke Range40-110mm (freely adjusted)
    Max. Forming Area

    AL/PVC:135×110mm

    AL/AL:130/110mm

    Max. Forming Depth
    AL/PVC:25mm
    AL/AL:12mm
    Toal Power

    AL/PVC:3.3kw

    AL/AL:2.1kw

    Air Pump Volume Flow≤0.15 m3/min
    PVC for Medicine(0.15-0.4)*150mm
    Aluminum Foil for Seal;ing(0.02-0.15)*150mm
    Forming Aluminum(0.16-0.2)×150mm
    Overall Dimensions (L×W×H)2300×560×1410mm
    Machine Weight600kg

    Introduction:

    1. DPP-150C multifunction automatic blister packing machine is an new product developed by our company and No. 118 Hospital of CPLA, collecting the advantage of aluminum/plastic packing machines at home and abroad, and the important parts are adopted with our five patent technology. It is suiatble for packing tablets, sugar-coated tablets, capsules as well as small food, hardware and electronic components. It combines ten functions to a whole such as web cutting, aluminum/plastic feeding, blister forming, filling, aluminum foil printing, aluminum/plastic heat-sealing, bach number printing, cross-hatching creasing, sheet cutting, counting etc. It's unnecessary to be operated by manual during production, the packed products have fine sealing, safe and hygienic. The performance and price of machine is better than the similar products abroad.
    2. This machine was checked and approved by scientific and technological achievements evaluation of Zhejiang Province, listed as one of the key national new products and national improvement and GMP carried out in China. It is sold to the pharmaceutical factories, big and medium-sized hospitals throughout the nation, and exported to India, Pakistan, Malaysia, Burundi, Hongkong and Taiwan etc, and well appreciated by customers.


    Performance & Features:
    1. With frequency stepless speed regulating, the punching frequency reaches 6-35times per minute.
    2. The stroke can be adjusted within 40-110mm, which is easy to adjust with correct synchronization.
    3. Adopts plate-type mould, positive-pressure forming, featured by batch number printing, creasing and cutting, aluminum-foil/plastics automatic feeding, automatic alarm for broken-piece and finished-piece and automatic stop etc.
    4. Equipped with one set general feeder, which filling percentage reaches 99.5 and above. The feeder is fitted with dust exhaust joint so can overcome the dust problem during feeding.
    5. Adopts registering matching heating so that can reduce the heat energy loss of heater to the least, and the required temperature will be greatly reduced.
    6. This machine has small volume, light weight, cramped structure, easy operation and maintenance.
