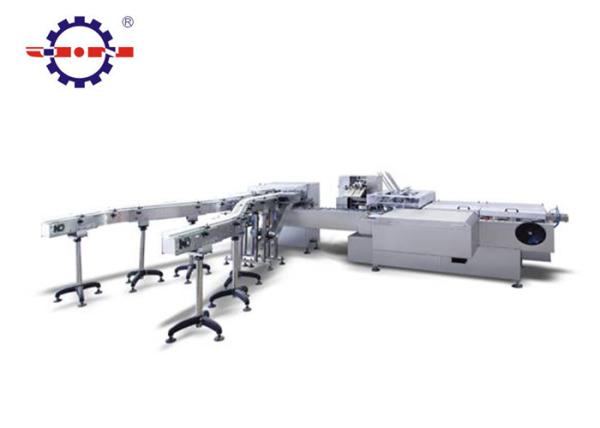

1) MULTIFUNCTIONAL AUTOMATIC CARTONER(ZH-180)
Main Technical Parameters
| Max Encasing Speed | 180 Box/min) |
| Box | Quality Requirement | 250-350g/㎡ |
| Dimension Range(L×W×H) | (80-150)×(40-70)×(15-40)mm |
| Leaflet | Quality Requirement | 60-80g/㎡ |
| Unfolded Leaflet Specification (1-4Fold) | (130-240)×(100*180)m |
| Air Consumption | ≥0.3m3/min 0.6mpa |
| Motor Power | 1.5KW380V50HZ |
| Machine Dimension(L*W*H) | 4500*1600*1600mm |
| Machine Net Weight | 1748kg |
( Notes: If any change of data, we will not notify further
PERFORMANCE AND CHARACTERISTICS:
■
Continuous mechanical feeding materials and carton packing, and
working of each functional part is in harmony stable and reliable
■
When materials do not reach correct position, the pusher has an
alarm and halt facility for that, in order to ensure good quality
of carton packaging and safety in operation effectively
■
Constantly moving carton-opening and pulling carton-opening
mechanism are more stable and reliable
■
Servo material departing and feeding mechanism is stable and
reliable
■
Halt facility for air pressure and vacuum protection, when
safety-cover is opened, the halt facility be checked automatically
for operating safety of the machine
■
It is easy, convenient and quick to change and adjust product size
by hand wheel
■
Variable frequency speed regulation, automatic PLC control system
with touch screen easy to operate, the system run stably
■
Overload protection for principal driving, indication of failure
diagnosis, automatic fault shutdown
Main Function:
Automatic folding (1-4 folding) and conveying of manual leaflet,
automatic material categorizing and feeding automatic paper carton
spreading automatic manual leaflet and material carton packaging,
synchronous printing (3-row) batch number, automatic paper carton
sealing, automatic waste-products eliminating. It can be used for
AL/PVC blister plates, injection tray, bottles, ointment product's
automatic encasing
