Automatic Capsule Filling Machine NJP-400C

Introduction

It adopts multi-bore dosing, intermittent motion and frequency control. It is suitable for automatically completing capsule feeding, separating, filling, (waste capsule rejecting), closing, finished product ejecting for powder or micro pill medicine in capsule. Its characteristics are advanced structure, the newest closed ten position rotating table, high precision, low noise and best suitable for domestic machine-made capsule, and soon the key parts of the bearing and electrical equipment adopts international famous brand, performance stability and can be run at a high speed. All parts contacting the medicine powder are cade of quality stainless steel, provide dust collector device and made according to GMP standard.

Character

1. Small volume, low consumption of energy, simplification in changing modules. Easy operating and cleaning.
2. Adopt Fugexan eliminating Ma's trough roller to transmit, less vibration, its noise is lower than 75dB while running at top speed. Dose difference is controlled within ± 3%.
3. The rate of capsule filling is >99%.

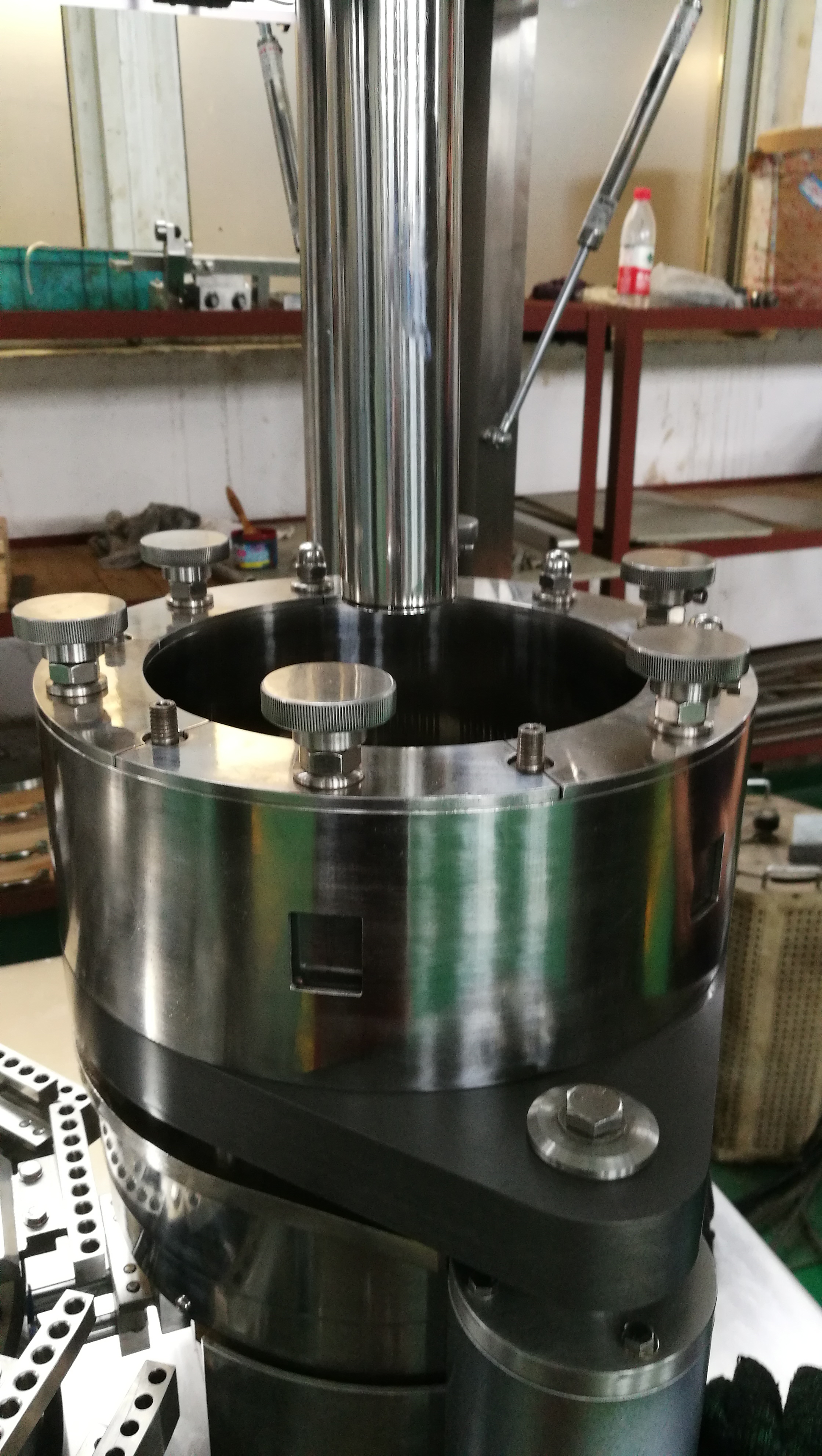

4. It adopts closed environment turret, and solves the troublesome of installing the mould after cleaning frequently, which rooted in the operation time of normal models, was lasted for long time so that the medicine powder was stick to oil.
5. The turning-around parts are in full closure, having excellent lubricating conditions. Without old spot on the working bench, avoiding the cross pollution with medicines. Around the dose dish are fixed with shelter, which can reduce the medicine powder cast from under the dish through another pipe.
6. Meanwhile, it can reduce the dust on the surface of the bench.
7. The working station cam runs under the good lubricating condition, and equipped with the pressure pulverization oil pump, maintains the inner lubrication of cam slot to a full extent, and decreasing the abrasion, thus extends the operating life of change parts.
8. Adopt man-machine interface (including PLC programming controller, crystal screen displaying the output each minute, accumulative output, dynamic empty capsules and medicine powder state, alarming for lacking of capsules and insufficient medicine powder stop, trouble shooting display and so on ) It has communication therma

​Zhejiang jiangnan pharmaceutical machinery co, Itd was established in 1997, which integrates R&D, manufacturing sales and service Our factory is located in economic development zone, ruian Zhejiang Province, which has a 14000 square meters modern standard worshops, Main products are high -tech machinery in pharmaceutical, packing and food fields, including high efficiency film coating machine, high speed cartoning machine, automatic medicine packing line, ALU/PVC(ALU/ALU) blister packing machine, softgel encapsulation machine, mixing and granulating machine and pillow packing machine and so on. Our company is one of he main drafting units for the blister packing machine

With the reliable quality, stable performance and thoughtful after sale service, Jiangnan products are widely sold to all provinces in China and more than 80 countries in America, Europe, Asia, Africa and Australia. Even we have representative offices in Pakistan Bangladesh, India and the Netherlands, and France, and Indonesia and Iran, and Mexico. Jiangnan is with strong technical force, and strong R&D capabilities and has obtained 60 national patents Research and development Center have 21 staff, including 16 undergraduates and mid-level engineers and company is equipped with a variety of high-end processing and testing equipments, which provide quality assurance for product

Zhejiang Jiangnan Pharmaceutical Machinery Co, Ltd has been appraised as national high-tech enterprise, Zhejiang famous rand, Provincial high-tech enterprise research and development center, National intellectual property right advantages enterprise, Zhejiang province high-tech minor enterprise, Zhejiang Patent Demonstration Enterprise, Zhejiang AAA credible enterprise,
Wenzhou famous products, Industrial leading enterprise, and so on. The enterprise has passed iso9001 quality management system, standard good operation confirmation, measuring and esting system certification. It has the right to operate import and export, all products under CE certification. Our company has 60 patents now, including 15 invention patents Jiangnan company pleasure to work together with you to achieve wIn-WIn goals
